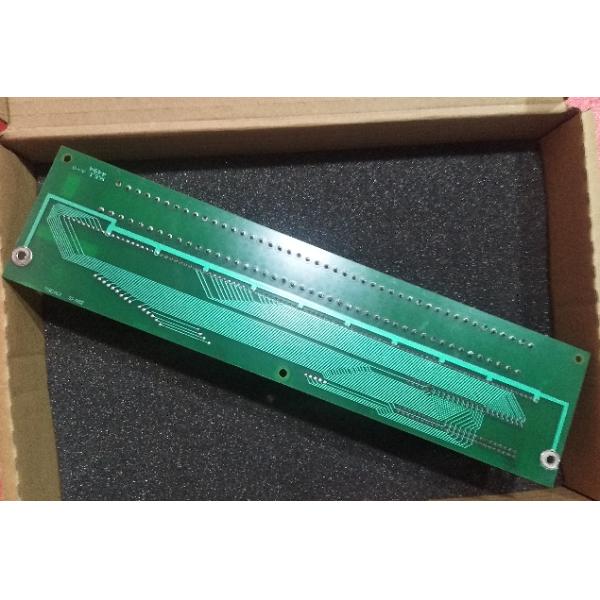

GE DS200TBCAG1AAB Analog I/O Terminal Board Mark V Ge Turbine Control
Product Details:
The GE DS200TBCAG1AAB is an Analog I/O Terminal Board designed for GE’s Mark V Turbine Control System—a robust, widely used system now replaced by newer Mark VI/Mark Vie models, but available in two variants: triple-redundant “TMR” (with two extra controllers) and single-channel Simplex. A revised version of the original DS200TBCAG1 parent board, it serves as a critical I/O interface, featuring two blocks of 90 signal wire terminals and two 50-pin connectors for linking to other Mark V components—including JCC/JDD connectors JCC for 1-15, JDD for 16-30 R5 Core signals.
It integrates with the Mark V’s I/O architecture: each I/O pack includes a local processor board and a specialized data acquisition board. Each I/O processor has a temperature sensor; excessive temperatures trigger diagnostic alarms, with real-time temperature and alarm logic stored in the database to support control actions or alerts.
Key Features:
Dual-Variant Mark V Compatibility: Meticulously tailored for both the triple-redundant TMR and single-channel Simplex Mark V variants, adapting to the reliability needs of critical and non-critical turbine setups alike—eliminating the need for variant-specific terminal boards and simplifying inventory management for operators with mixed Mark V fleets.
High-Density, Specialized I/O Connectivity: Boasts two 90-terminal blocks and two 50-pin connectors for comprehensive signal routing, plus dedicated JCC/JDD connectors for TCCA Board RTD signals—ensuring uninterrupted, low-interference transmission of temperature data and supporting all analog I/O needs of large-scale turbine systems in a single board.
No Configurable Hardware for Error-Free Operation: Lacks jumpers, DIP switches, or other movable components, removing the risk of misconfiguration and wear from adjustments—delivering “plug-and-play” compatibility with Mark V I/O architectures, reducing troubleshooting time, and ensuring consistent performance across deployments.
Integrated I/O Diagnostics with Proactive Alerting: Links to Mark V I/O packs equipped with high-precision temperature sensors and real-time alarm logic—triggering diagnostics for excessive heat, storing data in the system database, and enabling proactive maintenance or control adjustments to prevent unplanned downtime.
Legacy Reliability for Long-Term Continuity: As part of the widely deployed Mark V system, the board is built with industrial-grade components to match the system’s durability—ensuring long-term compatibility with existing Mark V installations and extending the lifespan of critical turbine control infrastructure.
